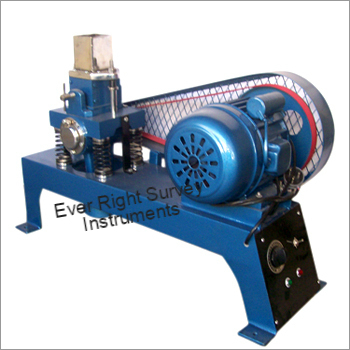

Since our establishment, we are engaged in offering optimal quality Vibrating Machine that conforms to 10080-1982. Especially designed to perfection, it consists of frame mounted on four coiled spring that helps to carry a cube mould and an eccentric revolving shaft mounted in ball and roller bearing. Ideal for the operation on 220V, 5Hz, single phase power supply, this has vibration frequency of 12000± 400 R.P.M. per minute. Rugged construction, negligible maintenance, high operational fluency, excellent performance and longer working life are some of the salient features of the Vibrating Machine.
i) Flat Belts
ii) Set of Springs.
iii) KEW Cube Mould 70.6MM (I.S.I. Marked)
iv) Lubricant - 100cc.
The machine is used for compaction of 70.6mm cube specimens of cement mortar under standard vibration required for determination of compressive strength of cement. The vibration machine consists of a frame mounted on four coiled springs to carry a cube mould and an eccentric revolving shaft mounted in ball and roller bearings. The machine is so balanced that the eccentric imparts simple harmonic motion to mould carrier and the mould. The frequency of vibration is 12000 ± 400 R.P.M. per minute. The drive from the motor to the eccentric shaft is through an endless flat belt running on crowned pulleys. Suitable for operation on 220 V, 50 Hz, single phase power supply.
Supplied complete with a time switch, one 70.6mm I.S.I. marked cube.
OUR Vibrating Machine Digital IS : 10080-1982
Same as above except that the machine is supplied with the digital timer.
